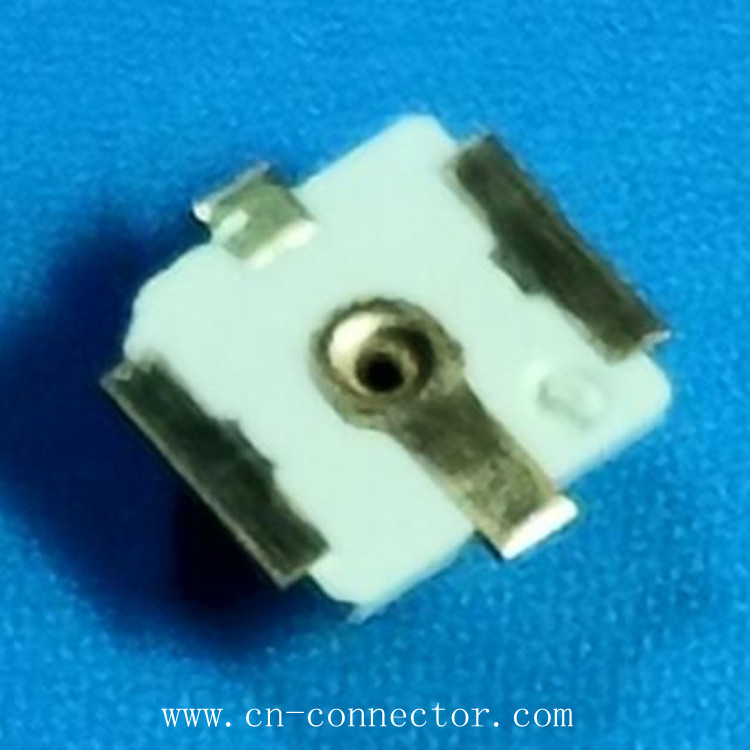

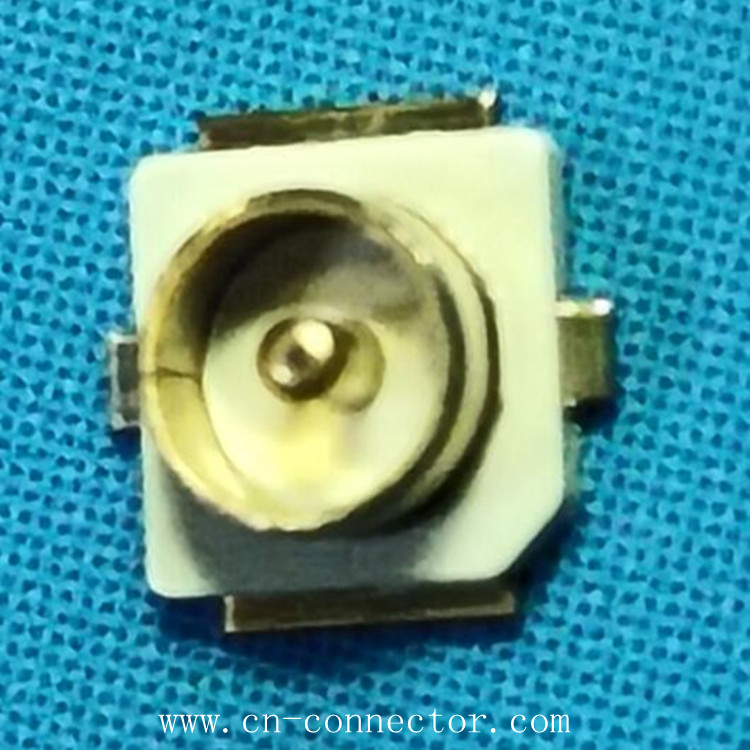

This is SMT type, space saving and co-axial connector, corresponding to notebook PC, thinner and lighter telecomminications apparatus, etc.
[Application]
UWB, WilMAX, Wireless LAN, Bluetooth, DSRC, Mobile phones, PDA, GPS, Express, etc.
| | Product Profile | | Series | AYU1 connector | | Category | Coaxial Connectors | | Type | Coaxial connector, Compact type, Low-profile type |
| | Specification | | Impedance | 50 ohm | | Frequency band | DC ~12GHz | | VSWR | 1.3 and under(DC ~3GHz) | PC board
mounting direction | Top entry |
|
|
