A2501系列
分享到：

A2501系列

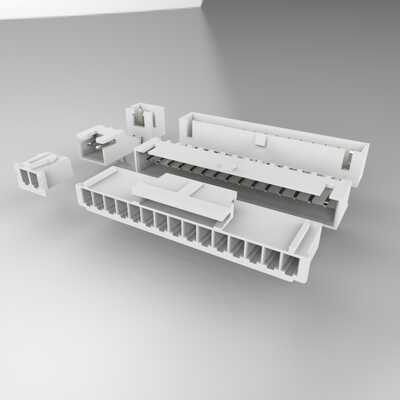

XH connector Disconnectable type Crimp style, Shrouded header type
间距mm： 2.5
包装数量(k)： 10
最小订购量(k)： 10
包装方式： BAG/REEL
电流A： 3
应用线径mm： 22~28AWG
Description： XH connector Disconnectable type Crimp style, Shrouded header type
关键词： S2B-XH-A-1,S3B-XH-A-1,S4B-XH-A-1,S5B-XH-A-1,S16B-XH-A-1,B2B-XH-2,B3B-XH-2,B4B-XH-2,B5B-XH-2,B16B-XH-2
产品详情

This connector was developed based on the high reliability and versatility of our NH series connectors. The connector is very small with mounting height of 9.8mm.

Product Profile
SeriesXH connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeDisconnectable type
Crimp style, Shrouded header type

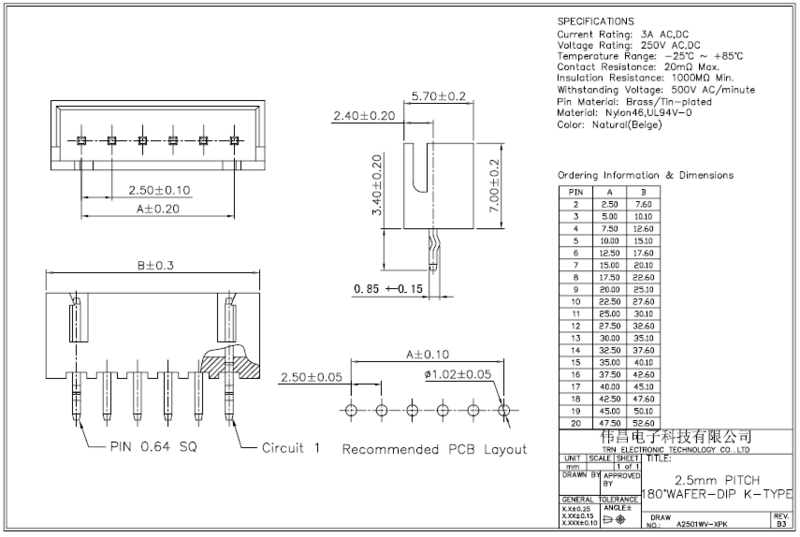

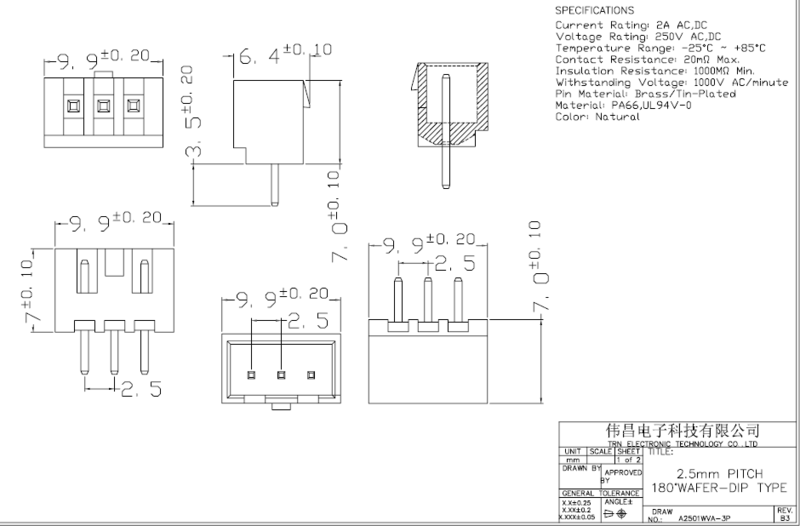

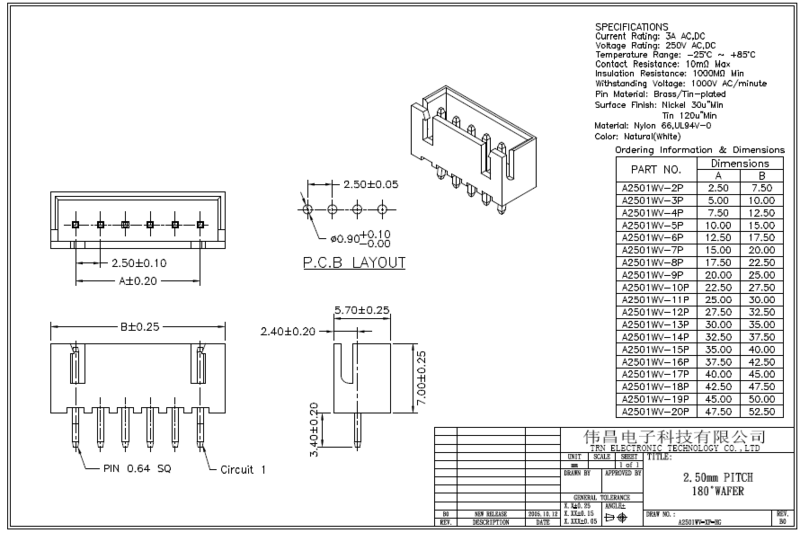

Specification
Pitch2.5 mm
Current rating3A (AWG#22)
Voltage rating250V
PC board

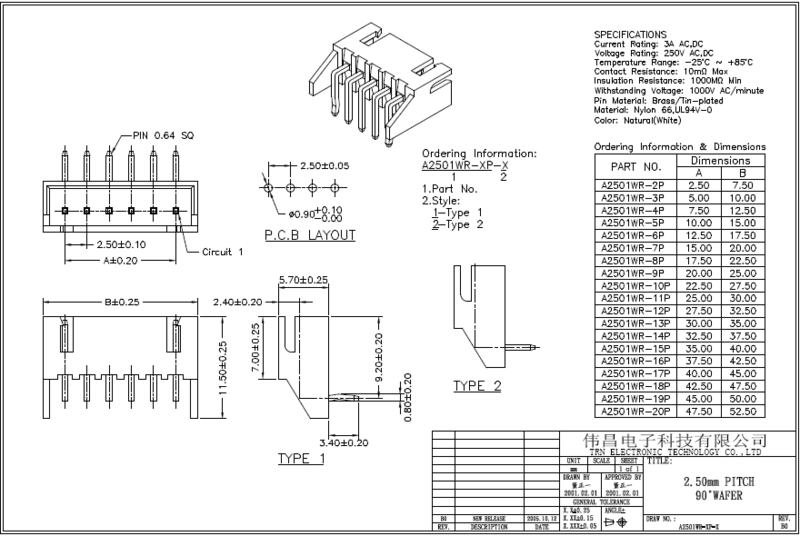

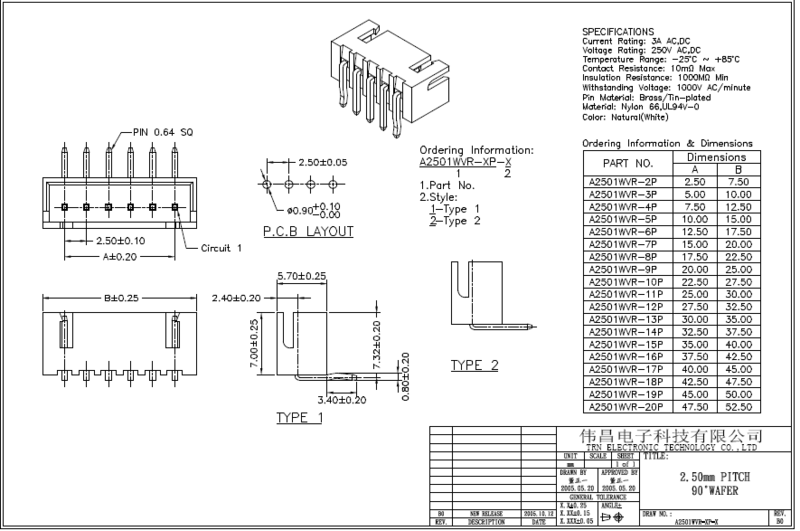

mounting direction		Top entry, Side entry

A2501系列东莞伟昌电子定制连接器工厂批发供应现货价格优惠免费索样品

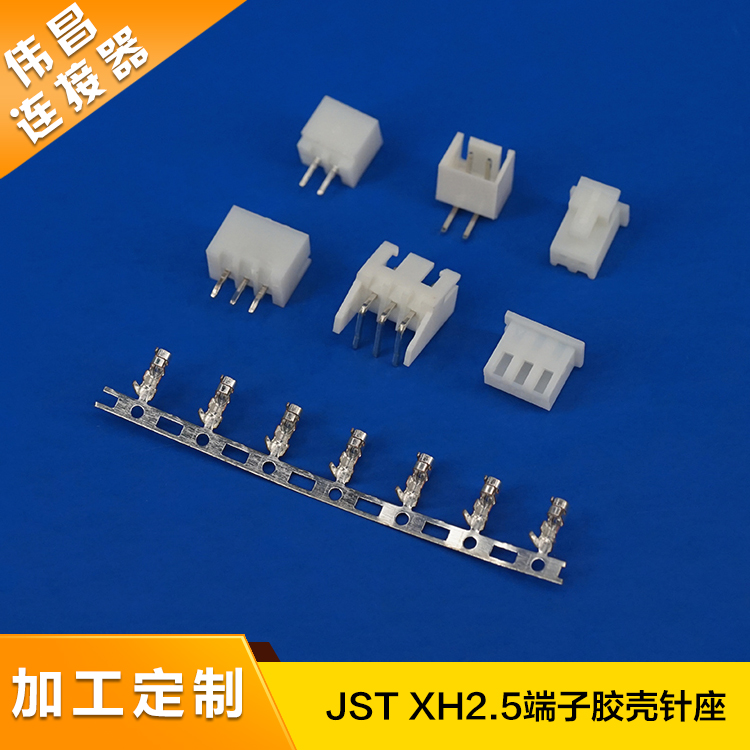

线对板电源连接器

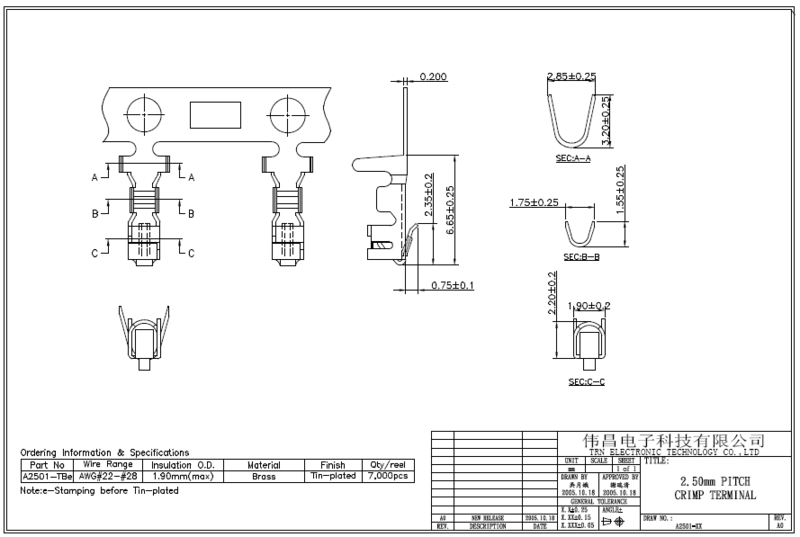

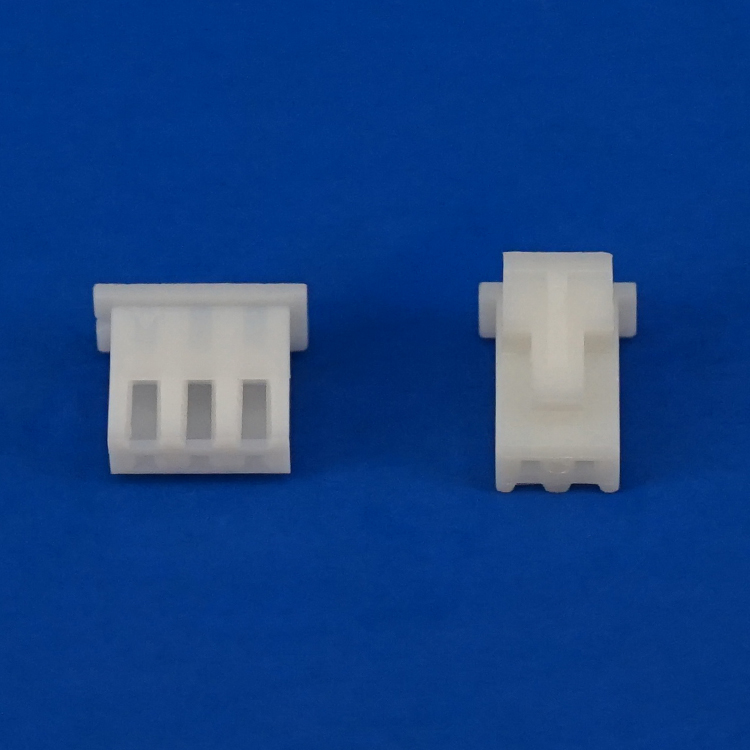

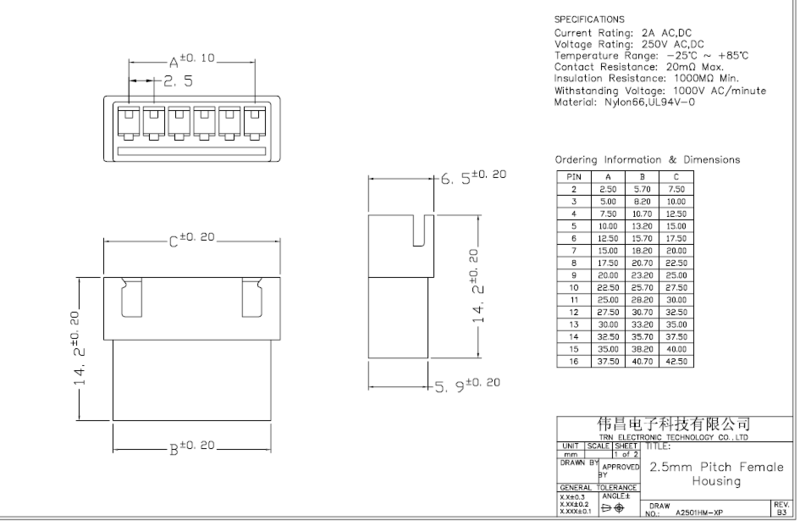

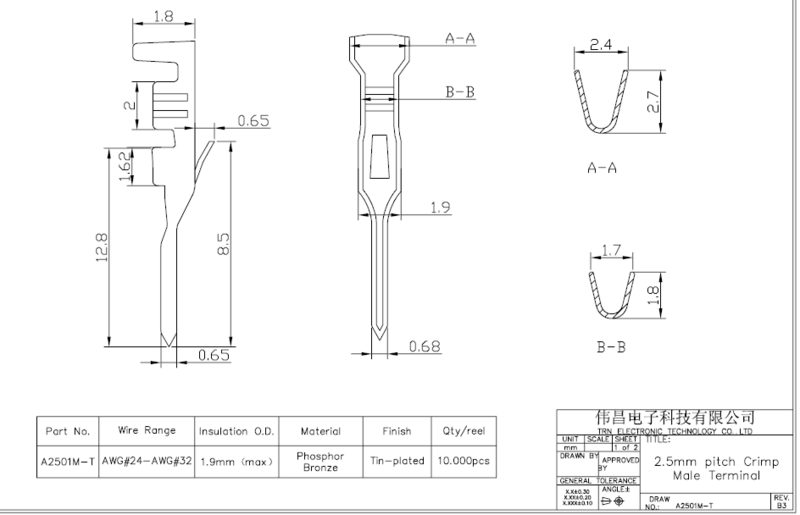

优势：磷铜端子可压接最大外径1.9mm规格线材，镀锡端子保证了更好导电性；胶壳PA66白色可定制环保无卤；针座PA塑胶，带锁扣插座Wafer保证产品抗震动性,可带定位和打k脚。

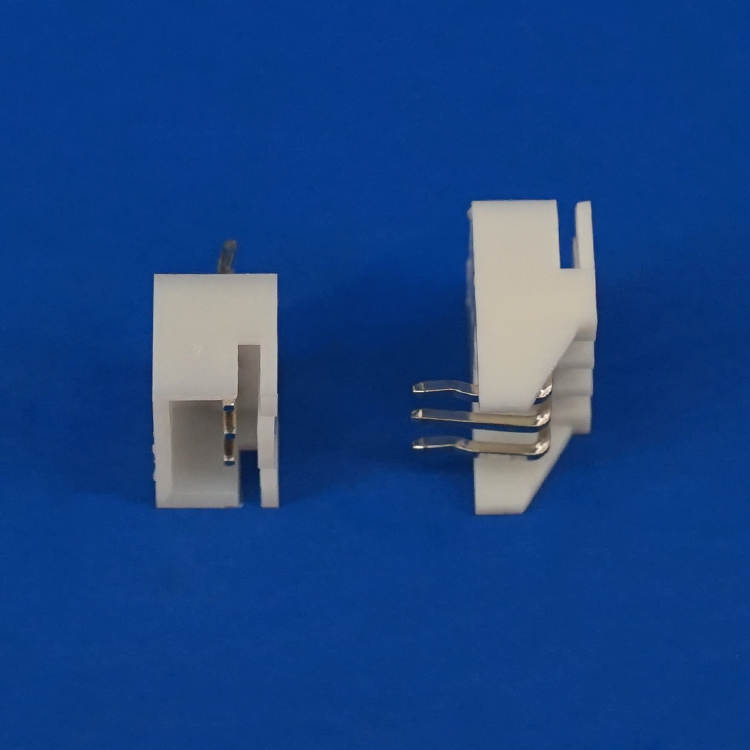

合高：直针/弯针——9.70mm/5.70mm。

应用：空调、洗衣机、智能家居、无人驾驶飞机、打印机接头、游戏机接插件、电动工具连接器、工业自动化设备、电机电源、液晶显示器。


想了解更多连接器相关产品

请点击进入以下“间距”分类图片链接进入——

请点击了解更多产品信息……


        东莞伟昌(TRN Electronic Technology)是集连接器产品研发、制造、销售一体的专业伟昌连接器(TRN Connector)制造型企业，产品有环保无卤（SGS下载）线对板连接器、板对板连接器、线对线连接器、FPC 连接器、排针排母连接器、IDC刺破式连接器、基板端子、FFC排线、端子线束、IDC排线、SATA线cable、汽车连接线及连接器模具（代工开发）研发制造‍。

伟昌连接器厂家从接插件、插头插座、汽车连接器、线束加工、Molex连接器、JST连接器等多类别为客户提供新品PCBA方案选型定制化服务。

伟昌电子关注最新动态，从行业应用——汽车电子、LED灯、液晶显示器、安防监控、家用电器、工业自动化、医疗设备、数据存储传输‍出发，满足各领域连接器项目开发。长江连接器有限公司|CJT CONNECTORS|连接器|接插件|电子连接器|连接器厂家

官网：/，产品咨询0769-8978 3288.
